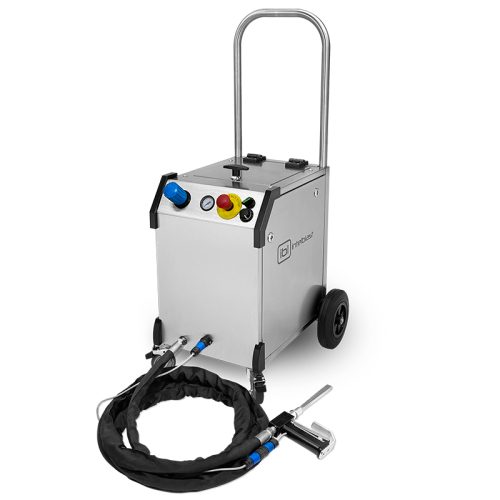

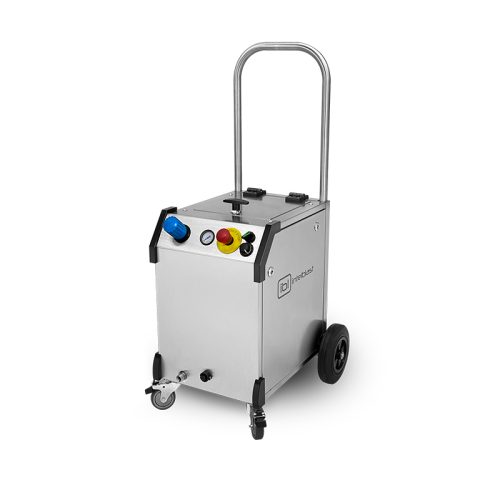

COMPACT AND AFFORDABLE MACHINE FOR LOW AIR FLOW COMPRESSORS
The IBL Mini is the ideal choice for those companies, who would like to have the opportunity to clean small parts and surfaces, without having the usual constraint for a high air flow compressor.
Daily maintenance on processing equipment and electronics or the occasional cleaning of parts is easily carried out with the IBLmini.
Height: 610 w/o handle/895 mm | Width: 480 mm
Depth: 550 mm | Weight: 32 kg | Hopper size: 8 kg
Dry Ice consumption: 10 a 30 kg / hr
Pressure: 2 – 12 bar
AIR REQUIREMENTS
One of the most important benefits of the IBL Mini (besides it’s price) is that it is designed to function using plant air supply. Most factories only have compressors that generate 7 bar and an air volume of 500 to 3000 liter/min available which for most cleaning jobs with the IBLmini should be sufficient to achieve the desired result.
ALMOST NO NOISE
Being able to dry ice blast in an area where other people are working can be done with an IBLmini. Operating at sound levels as low as 75 dB makes it possible to work even without hearing protection.
NOZZLES AND BLAST HOSE
The standard 4 and 5 mm aluminum nozzles are machined for low air flow and together with the lightweight 5 meter ½ inch blast hose, the operator has an easy to handle set-up.
To achieve the optimum cleaning performance for air consumption under 1000 L/min, then the flat 3 mm nozzle should be used and the dry ice pellet size should be 2,2 mm or smaller.
If using the 3 mm industry standard dry ice pellets then the 4 or 5 mm nozzle can be used.

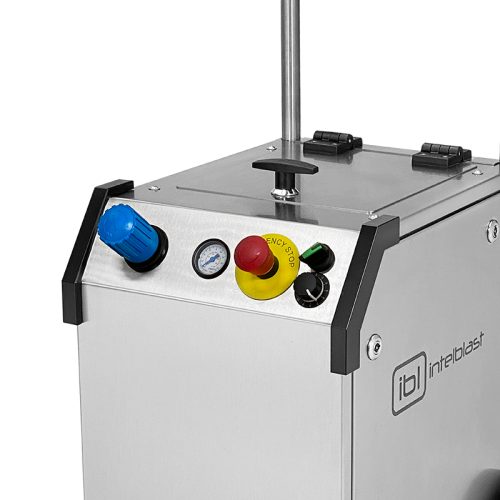

CONTROL
Dry ice consumption can be regulated from 10 to 30 kgs/hour and the blast pressure can be adjusted between 2 to 12 bar.
EASY TO TRANSPORT, MANEUVER AND STORE
Weighing only 32 kgs and dimensions of 550x480x895 mm the machine can easily be lifted into a car or stored on a shelf. Equipped with wheels and holder for the blast hose, rolling it to the point of use is an effortless task.
Nozzles included
4 mm – 1,5 m3/min
5 mm – 2,5 m3/min
Hose standard
5 meter (1/2”) technical rubber without silicone
Pressure
2-12 bar
Dry ice consumption
10-30 kg/hr
Hopper size
8 kg
Width (Including wheels).
480 mm
Depth
550 mm
Height
610 mm / 895 mm
Weight
39 kg
Vibrator
Electrical
Pressure regulator
Festo 1/2”
Pressure regulation
Direct.
Air is only passing through regulator. No restrictions.
Chassis
Stainless steel
Cover
Stainless steel
Air consumption:
Minimum: 1.000 L/min
Ideal: 2.000 L/min
Maximum: 3.600 L/min
